By Priya Anand, Backpacking Gear Research Writer · Published September 14, 2026, 6:03 PM ET
Direct Answer
An internal-frame backpack is a hiking pack whose structure — usually aluminum stays, a molded plastic frame sheet, or both — sits inside the pack body against a padded back panel, rather than as a rigid frame the pack bag hangs from outside. The frame curves to follow the spine, keeping the load close to the hiker's center of gravity.
Affiliate disclosure: this page contains affiliate links. Purchases made through them may earn us a commission at no extra cost to you. See our affiliate disclosure.
In plain English
Think of an internal frame as the skeleton of a backpack. On old-style packs the skeleton was on the outside, a metal ladder you strapped a bag to. On an internal-frame pack the skeleton is tucked inside the fabric, right behind your back, so you never see it.
That hidden frame does an important job. It stiffens the pack so the weight can travel down to the padded belt around your hips, instead of hanging off your shoulders. It also keeps the load snug against your body, which helps you balance when the trail gets rocky.
Frames come in many forms. Some are thin metal rods, some are a stiff plastic sheet, and some are a bent tube around the edge of the back panel. The stronger the frame, the more weight the pack is built to carry comfortably.

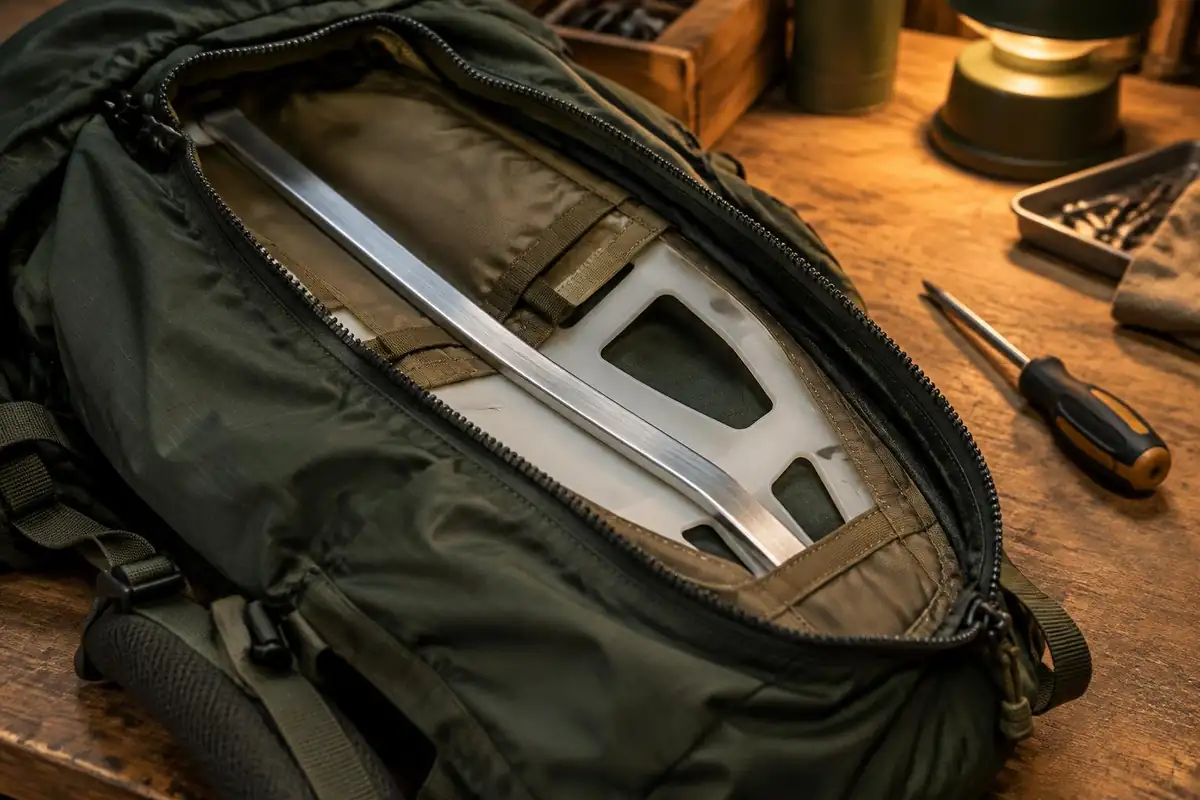

An internal-frame backpack builds its structure into the pack body itself: aluminum stays, a molded plastic or foam frame sheet, or a combination of both, sit inside a sleeve against the back panel rather than as a visible external frame. This keeps the pack's profile narrow and holds the load close to the hiker's spine.
How it differs from an external-frame pack
An external-frame pack suspends the pack bag from a separate rigid aluminum tube frame that sits outside the fabric, holding the load away from the back. An internal-frame pack instead embeds its frame inside the pack, against the back panel, which lowers the load's center of gravity and improves balance on uneven or off-trail terrain at the cost of some back ventilation.
Feature
Internal frame
External frame
Frame location
Inside the pack, against the back
Outside the pack bag
Load position
Close to the spine
Held away from the back
Best for
Off-trail, scrambling, most backpacking
Heavy or irregular loads on trails
Why most hiking packs use an internal frame
Internal frames became the standard hiking pack design starting in the 1970s and 1980s as more hikers moved onto steeper, rougher, off-trail terrain, where a pack that moves with the body outperforms one riding on a rigid external structure. Today, brands including Osprey, Gregory, Deuter and Mystery Ranch build the large majority of their hiking and backpacking packs around internal frames, ranging from single-stay ultralight designs to dual-stay expedition packs rated for 50 pounds or more.
The many kinds of internal frame
"Internal frame" covers a surprisingly wide range of parts. REI says the Flash 55 uses a spring steel frame.1 Its Traverse 60 uses a tubular aluminum frame instead.2 Granite Gear's Crown3 60 relies on a molded plastic frame sheet with an optional aluminum stay,3 while ULA's Circuit combines a carbon fiber and Delrin hoop, a foam frame and a single aluminum stay.4 Gossamer Gear's Mariposa uses a closed-shape aluminum frame paired with a pivoting hipbelt.5
What they share is location: all sit inside or against the back panel and work to transfer load to the hips. REI notes that most packs it sells are internal-frame designs built this way.6
How much the frame changes what a pack can carry
The clearest evidence that the frame does the heavy lifting comes from Granite Gear's own load ratings for one pack. The Crown3 60 is rated for 25 lb with the framesheet removed, 35 lb with it, and 43 lb with the optional aluminum stay added.3 Same bag, same hipbelt, very different carrying limit.
The page mentions dual-stay packs rated for 50 pounds or more. The packs in our verified library top out lower: REI rates the Traverse 60 for loads up to 45 lb,2 and Zpacks says its Arc Haul handles about 40 lb.7 Heavier-rated packs may exist, but always go by the specific model's stated limit rather than a general figure. Ultralight frames sit lower still; ULA gives the Circuit a 35 lb maximum.4
Why keeping the load close pays off, and where external frames still win
A military review of load carriage found the lowest energy cost comes when the load's center of mass sits as close as possible to the body's own center of mass.8 An internal frame naturally holds gear against the spine, which is a big part of why it became the default.
External frames have not disappeared for good reasons. REI says visible, usually aluminum frames suit heavy, irregular loads and ventilate well, while frameless packs save weight but are much less comfortable under heavy loads.6 Kelty, whose founder built packs from 1952, credits Dick Kelty with using aluminum frames and padded waist belts early on.9
